QWB-150 STP	Pump Motor Assembly (PMA)	Turbine Manifold

QWB-150 STP(Submersible Turbine Pump) is being developed by Sida itself, and got PCEC certification in 2001, which is the frist Chinese company who developed and put STP into Market. During the last 8 years, QWB-150 had run in many gas station for years in both China and other country.

Sida could provide both whole set of STP, or PMA and Turbine Manifold as parts to our customers.

Specifiction：

No.	Model	Ex Marking	Phase	Power(W)	Voltage-Frequency	Speed(RPM)	Rated Current(A)
1	QWB-150	Exsd Ⅱ BT4	1	1100W (1.5HP )	220V-50Hz		8.1

• Maximum flow: 260 L/M
• Maximum delivery lift: 30 meters
• Fuel: gasoline, diesel, Alcohol-Gasoline
• Automatically reset thermal protector
Sealing element: fluoric rubber with high intensity, oil-resistant
• Capacitor: ac 20uf/500V
• PMA is equipped with intake screen, whch prevent particle into STP
• Raiser: OD=114mm(4.5″), Thickness=4.8mm(0.188″), Height=200mm
• Leakage Indicator: Optional
• Siphon system: Optional

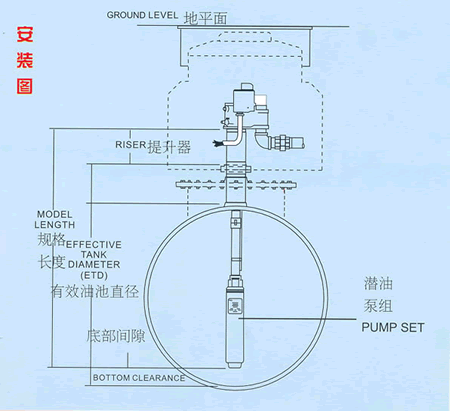

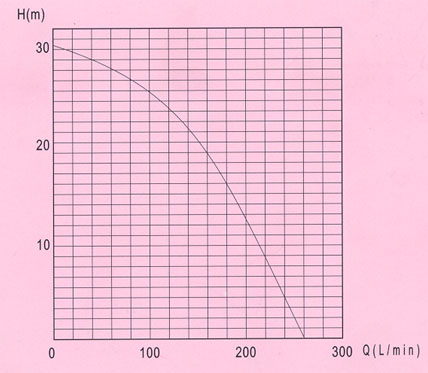

Performance Chart	Installation Diagram
